俗稱[眼鏡Link belt]是把鋼絲加工成為眼鏡狀，然后用力骨連結成的構造，擴大[網目]的方法是使用插入環軸或點焊容接。

　　Usually this belt is called Eye Link belt.Wires are formed
　　Into eye-links and jointed with rods. Mesh opening is
　　Increased by inserting collars or by spot welding.

　　Advantages
　　1．因用鏈輪驅動，可做確寶、穩定的運行。
　　Positive sprocket drive ensures stable running
　　2.因表面平滑，可做不穩定制品的搬送。
　　Belt has smooth surface and unstable products can be Carried.
　　3.容易洗凈。
　　Wahing is easy
　　4.開孔率大，因此通風性、脫水性佳。
　　Aperture can be incerased for high air permeability and Hydration capacity.
　　5.可運送高速度、重物。
　　Reinforcement plate links are made for heavy load and High speed.

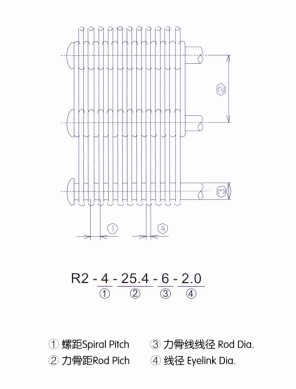

　　Standar specification (nominal size) Standar specification (nominal size)
　　規格Specification 重量Weight(kg/m2 ) 規格Specification 重量Weight(kg/m2 )
　　R2-6-63.5-13.8-3.0 32.9 R2-5.2-38.0-7.0-2.6 29.2
　　R2-5.2-63.5-12.0-2.6 32.9 R2-4-38.1-8.0-2.0 26.9
　　R2-4.6-50.8-8.0-2.3 24.2 R2-3.2-38.1-6.0-1.6 17.4
　　R2-4.0-50.8-10.0-2.0 27.6 R2-2.4-38.1-8.0-1.2 18.3
　　R2-3.2-50.8-8.0-1.6 17.1 R2-4-31.75-7.0-2.0 27.7
　　R2-5.2-50-6.0-2.6 21.4 R2-2.4-25.4-6.0-2.0 25.5
　　R2-4-50-6.0-2.0 18.0 R2-2.4-25.4-5.0-1.2 15.6
　　R2-5.2-50-5.0-2.6 18.8 R2-4-25.0-5.0-2.0 22.0
